The panels supplied by Consolidated Distribution Partners boast patented composite joining technology, bonds light gauge steel structural members together with EPS, delivering a stronger, lighter wall system which installs faster, and performing as structural framing, insulation, sheathing and vapor barrier — all in one.

Our Steel Structural Insulated Panels

X

Panel – Exterior Wall Panel

  • Used mainly for exterior wall applications
  • 5.5″ or 7.5″ thick, up to 4′ wide and 12′ tall
  • Effective thermal performance of R51 to R61
  • 4 or 5 structural studs on both faces of the panel (16″ or 12″ o.c.)
  • Up to 42,000 plf load LRFD
  • Ready for direct application of final skin
I

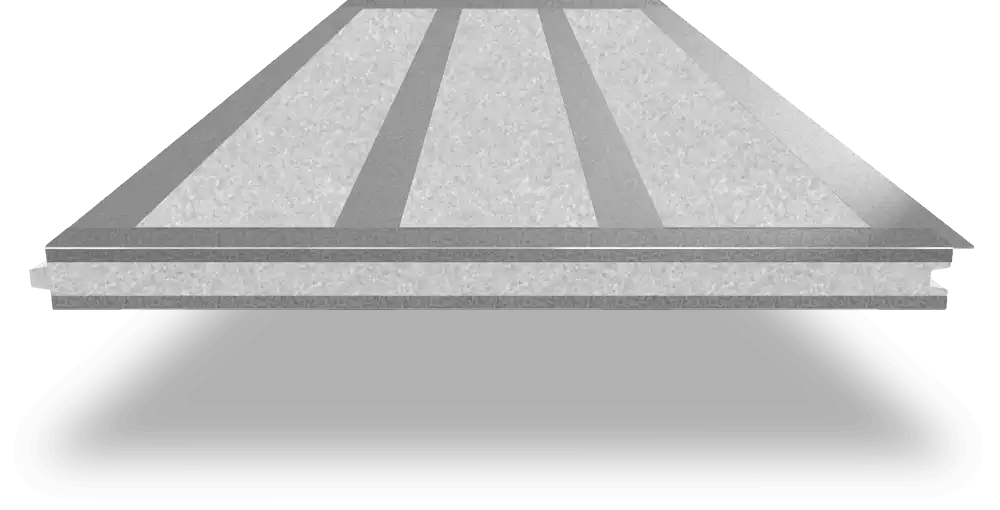

Panel – Interior Wall Panel

  • Used mainly for interior wall applications or tiny homes
  • 3.5″ thick up to 4′ wide and 12′ tall
  • Effective thermal performance of R28
  • 4 structural studs on both faces of the panel (16″ o.c.)
  • If you are looking for a quite room or DIY, this is your panel!
F

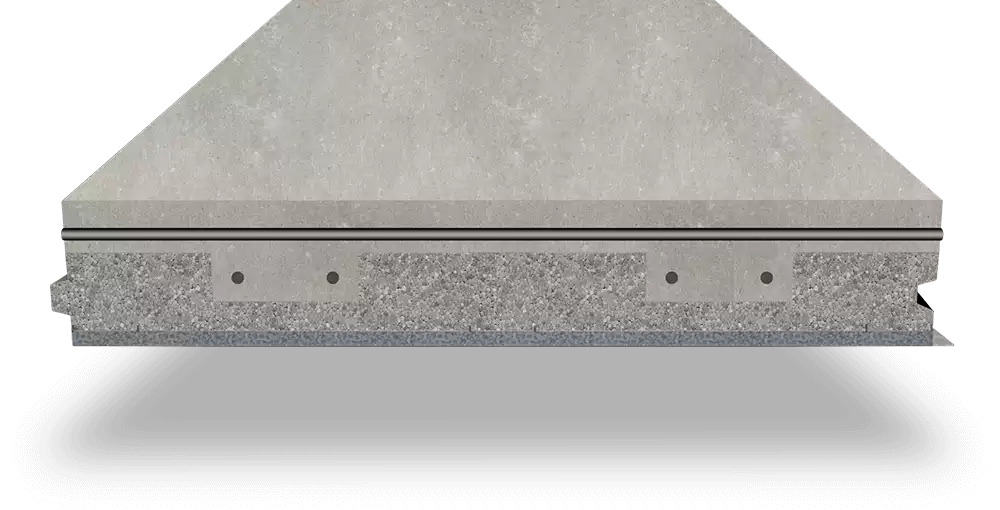

Panel – Concrete Floor Panel

  • Stay in place form for concrete slabs
  • 7.5″ thick R58 insulation, 4′ wide 12′ long
  • Two 8″ wide channels for rebar in the reinforced beams
  • Capable of spanning up to 50 ft clear with minimum shoring
  • Reduces concrete by 40% (average section is 58 psf)
  • High STC rating fire stop between floors
  • Reduces labor time by over 60%
  • 5 studs to hang ducts or attach sheathing directly
R

Panel – Roof Panel

  • 5.5″ or 7.5″ thick up to 4′ wide and 12′ long
  • Effective thermal performance of R51 to R61
  • 4 or 5 structural studs on both faces of the panel (16″ or 12″ o.c.)
  • Load bearing means we can reduce trusses by 2/3 (every 4-6 ft o.c.).
  • 2 panels can connect directly allowing for cathedral ceilings and A frames without supports
H

Panel – Hurricane Panel

  • Designed, tested, and certified to withstand 185mph, including flying debris
  • 5.5″ or 7.5″ thick up to 4′ wide and 12′ long
  • Effective thermal performance of R51 to R61
  • 4 or 5 structural studs on the interior faces of the panel (16″ or 12″ o.c.)
  • 11 studs on the exterior face making it projectile-safe
S

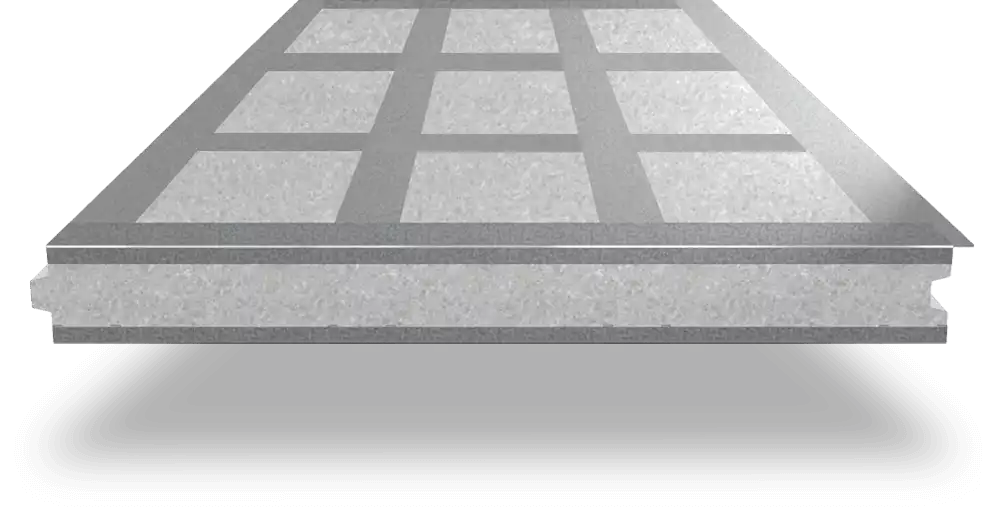

Panel – Shear Wall Panel

  • 5.5″ or 7.5″ thick up to 4′ wide and 12′ tall
  • Thermally broken with three horizontal bracings
  • Effective thermal performance of R51 to R61
  • 4 or 5 structural studs on both faces of the panel (16″ or 12″ o.c.)
  • Up to 2,420 plf with a 2.0 safety factor

Studs of our panels are turned sideways (creating a thermal break), orienting the strong side of the stud in the shear direction, effectively making every panel a shear panel.

B

Panel – Below Grade Panel

  • Used for foundation, knee walls, and retaining walls
  • 7.5″ thick 1.5 density up to 4′ wide and 12′ tall
  • Thermally broken with three sections and thermal performance of R61
  • 4 or 5 structural studs on both faces of the panel (16″ or 12″ o.c.)
  • Check the below grade manual for design guidelines and limitations
C

Panel – Ceiling Panel

  • Used as interior application under the truss or on the bearing walls
  • 3.5″, 5.5″ , or 7.5″ thick up to 4′ wide and 12′ long
  • Effective thermal performance of R28 to R61
  • 4 structural studs on both faces of the panel (16″ o.c.)
  • Pre-chased and ready to directly attach sheathing.
SPECS X PANEL I PANEL F PANEL R PANEL H PANEL B PANEL S PANEL C PANEL
Application Exterior wall Interior wall Concrete floor Roof Hurricane wall Below grade Shear wall Ceiling
Max size 4′ x 12′ 4′ x 12′ 4′ x 12′ 4′ x 12′ 4′ x 12′ 4′ x 12′ 4′ x 12′ or 2′ x 12′ 4′ x 12′
Min size any size 1/8″ changes any size 1/8″ changes any size 1/8″ changes any size 1/8″ changes 2″ changes any size 1/8″ changes 2′ or 4′ wide any size 1/8″ changes
Thickness 5.5″ or 7.5″ 3.5″ 7.5″ 5.5″ or 7.5″ 5.5″ or 7.5″ 7.5″ 5.5″ or 7.5″ 3.5″ or 5.5″
Special features Can connect 2 panels for tall walls Can connect 2 panels for tall walls Includes chairs for rebar Work diaphragm loads Certified projectile protocol 10′ limit Works with every hold down Ready for sheathing
EPS density (psf) 1.0 or 1.5 1.5 1.0 1.0 or 1.5 1.0 or 1.5 1.5 1.0 or 1.5 1.0 or 1.5
Thermal performance R35 to R49 / U0.028 to U0.0204 R23 / U0.043 R47 / U0.0212 R35 to R49 / U0.028 to U0.0204 R35 to R49 / U0.028 to U0.0204 R49 / U0.0204 R35 to R49 / U0.028 to U0.0204 R35 to R49 / U0.028 to U0.0204
Stud configuration 3.5″ / 8″ web 16″ or 12″ center 3.5″ / 8″ web 16″ or 12″ center 3.5″ / 8″ web 16″ or 12″ center 3.5″ / 8″ web 16″ or 12″ center 3.5″ / 8″ web 16″ or 12″ center 3.5″ / 8″ web 16″ or 12″ center 3.5″ / 8″ web 16″ or 12″ center with 6 horizontal bracings 3.5″ / 8″ web 16″ or 12″ center
Acoustic (STC) rating Commercial Residential Commercial Commercial Commercial Commercial Commercial Residential
Connect multi-panels Yes Yes Yes Yes Yes Yes Yes Yes
Thermally broken Yes Yes Yes Yes Yes Yes Yes Yes
Energy code compliant Yes Yes Yes Yes Yes Yes Yes Yes
Mold resistant Yes Yes Yes Yes Yes Yes Yes Yes
Smoke and fire resistant Yes Yes Yes Yes Yes Yes Yes Yes
Requires vapour barriers No No No No No No No No
Steel gauge 14, 16, 18, 20, 24 CSJ 16, 18, 20, 24 Track 24 Track 14, 16, 18, 20, 24 CSJ 14, 16, 18, 20, 24 CSJ 16 CSJ 14, 16, 18, 20 CSJ 18, 20, 24 CSJ / Track
Assembly type Non-combustable Non-combustable Non-combustable Non-combustable Non-combustable Non-combustable Non-combustable Non-combustable
Off gassing / allegrans / toxic like wood No No No No No No No No
